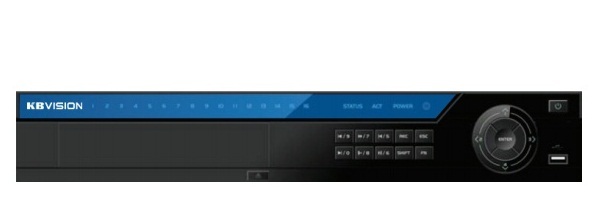

Đầu ghi hình IP 16 kênh 4K KBVISON KH-NVR216VD

Đầu ghi hình IP 16 kênh 4K KBVISON KH-NVR216VD

Technical Specifition:

System:

- Main Processor: Quad-core embedded processor

- Operating System: Embedded LINUX

Audio and Video:

- IP Camera Input: 16 Channel

- Two-way Talk 1 Channel Input, 1 Channel Output, RCA

Display:

- Interface 1 HDMI, 1 VGA

- Resolution: HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720, VGA: 1920×1080, 1280×1024, 1280×720

- Decoding Capacity: 2ch@4K 30fps, 8ch@1080P 30fps

- Multi-screen Display: 1/4/8/9/16

- OSD Camera title, Time, Camera lock, Motion detection, Recording.

Recording

- Compression: H.265/ H.264

- Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

- Record Rate: 200Mbps

- Bit Rate: 16Kbps ~ 20Mbps Per Channel

- Record Mode: Manual, Schedule (Regular, Continuous), MD, (Video detection: Motion Detection, Tampering,Video Loss), Stop.

- Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec.

Video Detection and Alarm.

- Trigger Events Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips

- Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

- Alarm input: 4 Channel

- Relay Output: 2 Channel

Playback and Backup

- Playback: 1/4/9/16

- Search Mode : Time /Date, MD and Exact Search (accurate to second), Smart search

- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

- Backup Mode: USB Device/Network Third-party Support

- Third-party Support: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network

- Interface: 1 RJ-45 Port (10/100/1000Mbps)

- Ethernet Port: 1 Independent 1000Mbps Ethernet Port

- PoE: N/A

- Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.)

- Max. User Access: 128 users

- Smart Phone: iPhone, iPad, Android

- Interoperability: ONVIF 2.4, SDK, CGI

Storage

- Internal HDD: 2 SATA III Ports, Up to 6 TB capacity for each HDD

- HDD Mode: Single

Auxiliary Interface

- USB: 2 ports(1 USB2.0, 1 USB3.0)

- RS232: N/A

- RS485: N/A

Electrical.

- Power Supply DC12V/4A

- Power Consumption < 6.9W(without HDD)

Environmental.

- Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa.

- Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH.

Construction:

- Dimensions: 1U, 375mm×281.5mm×56mm (14.8" x 11.1" x2.2").

- Net Weight: 1.6kg (3.5 lb) (without HDD)

- Gross Weight: 3.2kg(7.1 lb)(without HDD)

* Xuất xứ: Đài Loan

* Bảo hành: 24 tháng
